Multimedia and communication embedded system on automobile are much popular today, because of the rapid cost down of the semiconductor and LCD panels.
Sparkring cooperates with Aaeon Technology to develop the AEC-6610 multimedia and communication embedded system for automobile based on Freescale's iMX-31 multimedia ARM processor which contain a powerful ARM1136EJS core, hardware MPEG4 encoder and very rich I/O peripherials for the customers to utilize.
In AEC-6610, there are GPS and GSM drivers ported to provide the system integration a convenient platform to execute their applications. Touch panel, USB, SD card reader, UARTs, and video/audio input/output are also provided with the working drivers in WinCE 5.0 environment. It largely reduces the effort of porting customers' application. The power control coordination with the automobile power switch is also done by an independent MCU. The driver of 8" LCD in two different resolutions and the driver for LCM are also provided. We will provide the WinCE 5.0 BSP with Aaeon's AEC-6610 motherboard. If necessary, there are also Linux BSP available.
If you need further information, please do not hestitate to contact with us.

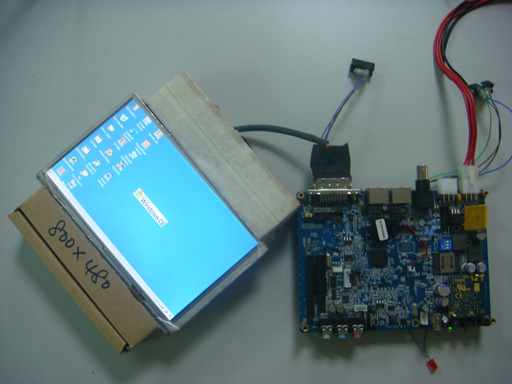

iMX-31 running WinCE 5.0

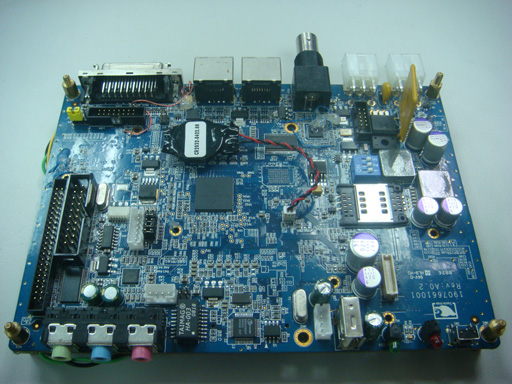

AEC-6610 motherboard (iMX-31)
