The price of large LCD TV is lower and lower and the video content is going to be in High Definition (HD) quality. Standard Definition (SD) video can not satisfy the quality request of the general customers and it becomes less attractive to people. It is the trend that the digital signage eventually will go for HD video playing.

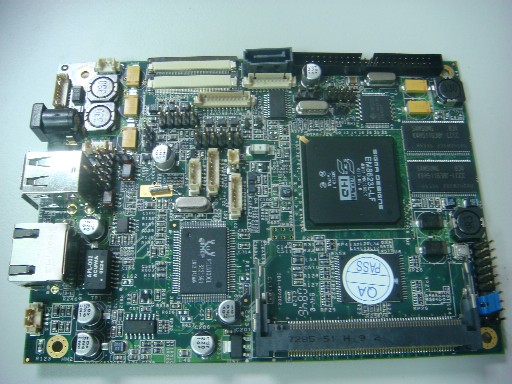

The HD video signage player, SP-301, we provide is using Sigma-Design EM8623-L. It is one of the lowest cost HD solution up to 1080p. It makes our products more compatitive. We also can customerize our software according to customer's needs. Integrated with our network technique, digiatl signage will become much more powerful. By working with our digial signage content management server (CMS), more possibilities can be realized.
With our player, multiple windows with video, image and text contents can be displayed. Text file based schedule is provided in our player. It can also be controlled remotely by the CMS server. The schedule can be downloaded into the player perodically and can be pushed into the player immediately as well.
uPNP home media ability is also integrated into our digital signage player. In small shops, if the signage client can also be used to play the content on your PC or NB to entertain your family or your friends and switch back to the signage at business hours.
The following are some characteristics of our signage player which may be interesting to you.
By utilizing the DMA and MBS, the marquee will consume little CPU power. It enables a very smooth marquee playing, ompared with existing PC signage solutions.
With Wifi module, contents can be transfered. signages can be controlled remotely.
We are able to provide different ID and IO devices for the needs of the customers.
If you need further information, please do not hestitate to contact with us.
| Digital Signage, SP-301 | |
| CPU | Sigma Design EM8623L 200MHz ARM V4T |
|---|---|
| RAM | 128MB |
| Flash | 16MB/8MB |
| PCI | Mini-PCI X 1, 33/66MHz |
| IDE | ATA, ATAPI 4 X 1 |
| SATA | SATA X 1 |
| USB | USB 2.0 X 4 |
| Ethernet | 10/100 M |
| Wireless | 802.11 a/g/b or b/g, mini-PCI |
| 3G/GPRS | USB Interface |
| Video | VGA, DVI, S-Video, LCD, HDMI (Optional) |
| Video Codec | MPEG 1/2/4, DivX, WMV, H.264, Quicktime |
| Audio | Stereo |
| Audio Codecr | LPCM, MP3, WMA, AAC |
| I/O | IR X 1, RTC X 1, UART X 2, GPIO X 16 |
| O.S. | uCLinux |
| Filesystem | FAT32, NTFS, ext2 |
| Network Filesystem | NFS, Samba |
| Schedule Playlist | Standalone (Text file), Network (http, SOAP, etc) |
| Multiple Windows | Video/JPEG/Marquee/RSS/Text Message |
| uPNP | uPNP 1.0 (WIndow XP.Vista Compatible) . |
